Mecarover

I wasn’t aware of Mecanum wheels until I saw the DJI Robomaster, and I was just mesmerized by the way it moves, seemingly floating over the floor in every direction. To me, it was the wheeled version of a quad, with four motors and no other moving parts controlling the vehicle’s direction. A quick Google led me to this video:

It just so happens I have a broken printer sitting on my floor, so I already have the stepper motors for that. But I know nothing about Arduino, so I started thinking about making a brushless motor version instead. I also know nothing about brushless motors for cars, so I just started drawing a wheel that would wrap around the 28mm bell of a drone motor.

I wondered why the rollers aren’t straight cylinders, which would maximize the contact patch. I found out soon enough: the edges of the rollers adjacent to the bottom would project below the bottom roller and lift it off the ground. So THAT’s why the rollers are curved.

Screen Shot 2019-06-13 at 1.05.17 PM.png

I eyeballed the curves of the rollers and marveled at how it resulted in a near perfect circle.

I sent Control.fpv my progress and had an epiphany.

Screen Shot 2019-06-13 at 2.09.39 PM.png

I started over, with a surface that represented the outer diameter of the wheel, and cut it at 45 degrees.

Screen Shot 2019-06-13 at 1.59.16 PM.png

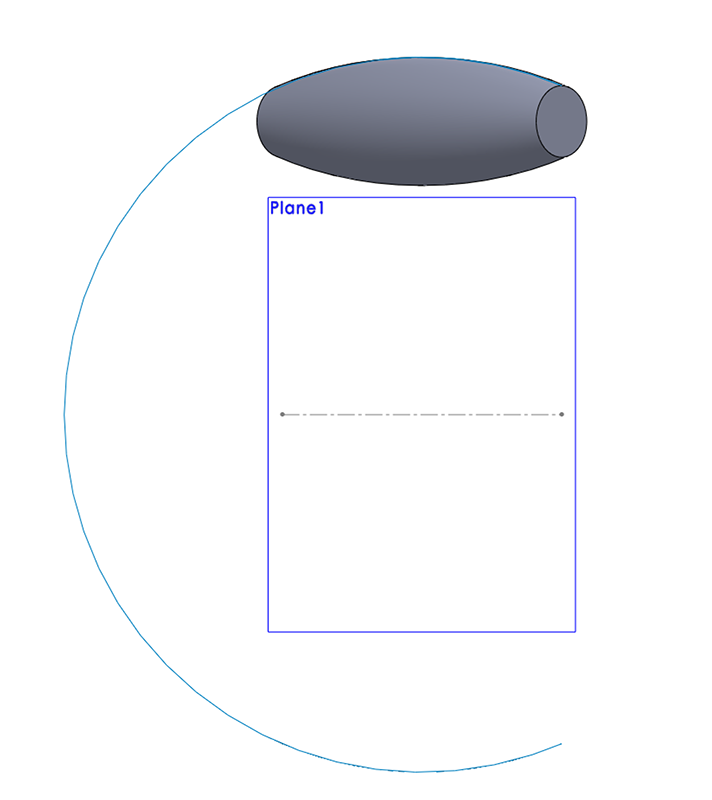

Then I took that cut edge and revolved it to create the roller.

Screen Shot 2019-06-13 at 2.03.27 PM.png

Pattern it and you end up with a perfect circle. Amazing!

Screen Shot 2019-06-13 at 4.39.25 PM.png

Next, the hubs. The Robomaster has beautiful rims, and since I’m doing this partly as Solidworks practice, I decided to draw something nicer than a flat disk. This turned out to be really really hard – the logic of the part was hard enough to figure out, much less model. I ended up with a two piece design, with axles projecting from the rim to hold TPU rollers.

Screen Shot 2019-06-14 at 12.58.08 PM.png
Screen Shot 2019-06-14 at 1.13.45 PM.png

Quick Word on Motors

I knew there was no existing motor made for this, so I ordered a gimbal motor, hoping its low kv would be good (yes I know they have low torque). The motor has a flat top with no axle so I drew up the hub accordingly. The
